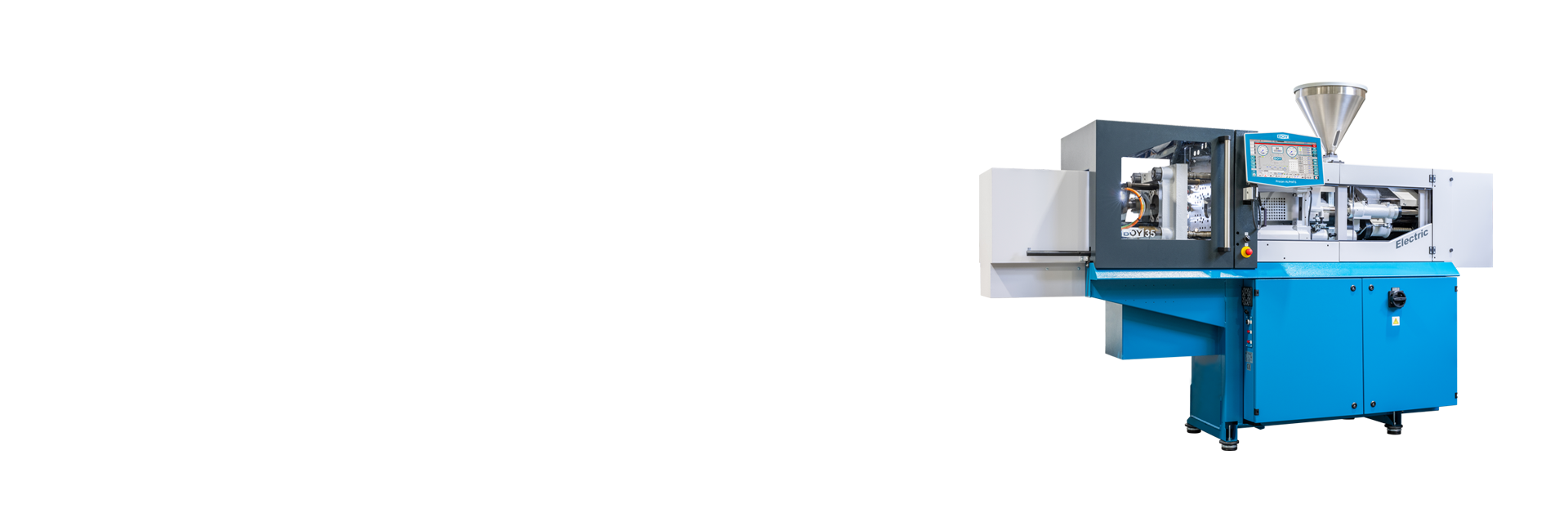

BOY 35 Electric – fully Electric Injection Molding Machine for High Dynamics and Automation
Advanced engineering for efficient injection molding
The BOY 35 Electric is a fully electric injection molding machine equipped with electromechanical drives for injection, plasticizing, and ejection. Exceptional dynamic response, highly accurate position control, and reduced cycle times make it an excellent choice for automated production and advanced plastics processing environments.
Space-saving design with energy-focused technology
This injection molding machine features a newly engineered universal injection unit with patented back-pressure sensing for maximum process reliability. Its two-platen clamping system provides a clean, oil- and lubricant-free mold area and is supported by energy-efficient servo-hydraulic components, a pressure booster, and differential pressure technology to optimize energy usage. The electromechanical ejector delivers smooth, precise, and highly dynamic motion without stick-slip effects – both at high loads and during slow, controlled movements. A redesigned, compact safety concept (OSSD) keeps the machine footprint small while maintaining full performance and operational safety.
Highlights
- Parallel movement without double pump
- Compactness of a two-platen machine
- Highly dynamic injection unit
- Lubricant-free tool installation area
- Improved synchronised movement during ejection
- Parallel clamping force build-up for injection
- Highest positioning accuracy
- Possibility to actively brake
Technical data
- Euromap Size:
350-11 / 350-16 / 350-45 / 350-56 / 350-81 / 350-96 - Screw Diameter:
0.55, 0.71, 0.87, 0.94, 1.1, 1.26 in - Max. Stroke Volume:
4.66 in³ (theoretisch) - Injection Volume Flow:
11.4 in³/s - Max. Spec. Injection Pressure:
39726 psi - Max. Daylight Between Platen:
19.69 in - Max. Opening Stroke:
11.81 in - Distance Between Tie Bars:
11.02 x 10 in
