FLEXIBLE EXPANSION FOR MULTI-COMPONENT APPLICATIONS
BOY injection molding machines – maximum performance for demanding applications
Precision & efficiency in plastics processing
BOY offers high-performance injection molding machines for applications where cost-effectiveness, low operating costs, and precise manufacturing are essential. When efficiency and quality in injection molding are top priorities, our machines are the optimal choice.
The BOY machine series include both horizontal and vertical injection molding machines, as well as electromechanical versions and complementary injection units. This allows for the realization of both automated high-volume production and compact, specialized solutions in confined spaces. Variable machine sizes, modern control technology, and energy-efficient concepts ensure flexible application options in plastics processing.
Added value through service & continuous development
An international service network, reliable spare parts availability, and continuous technical enhancements ensure long-term production stability. With technologies such as EconPlast units and servo-motor-driven systems, BOY injection molding machines achieve the highest precision while sustainably reducing energy consumption.

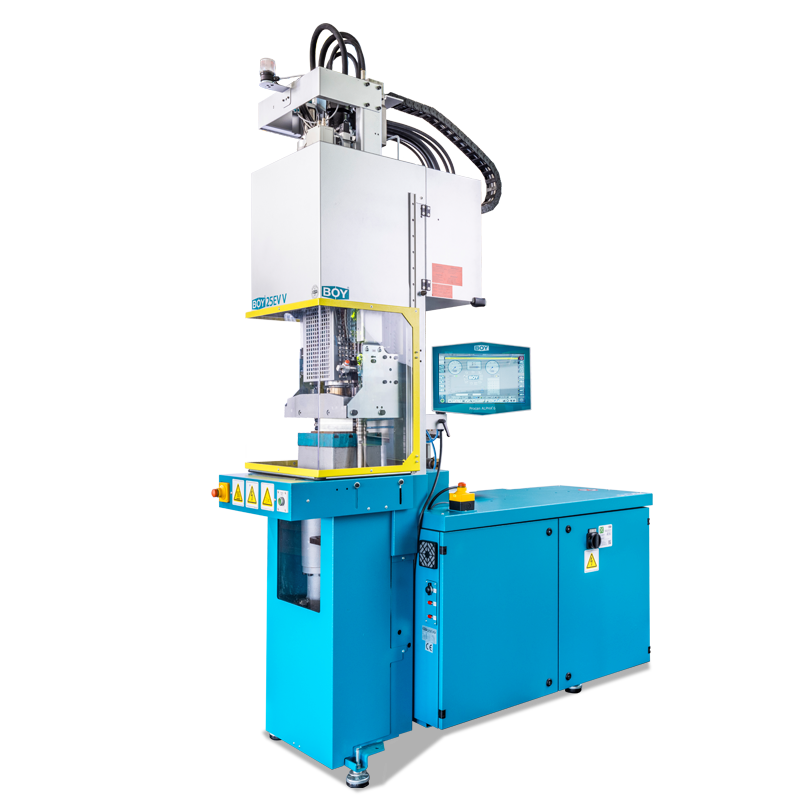

Vertical injection molding machine with 250 kN clamping force and advanced hydraulic technology. Designed for higher efficiency, smooth and stable operation, and excellent accessibility for tooling and automation.

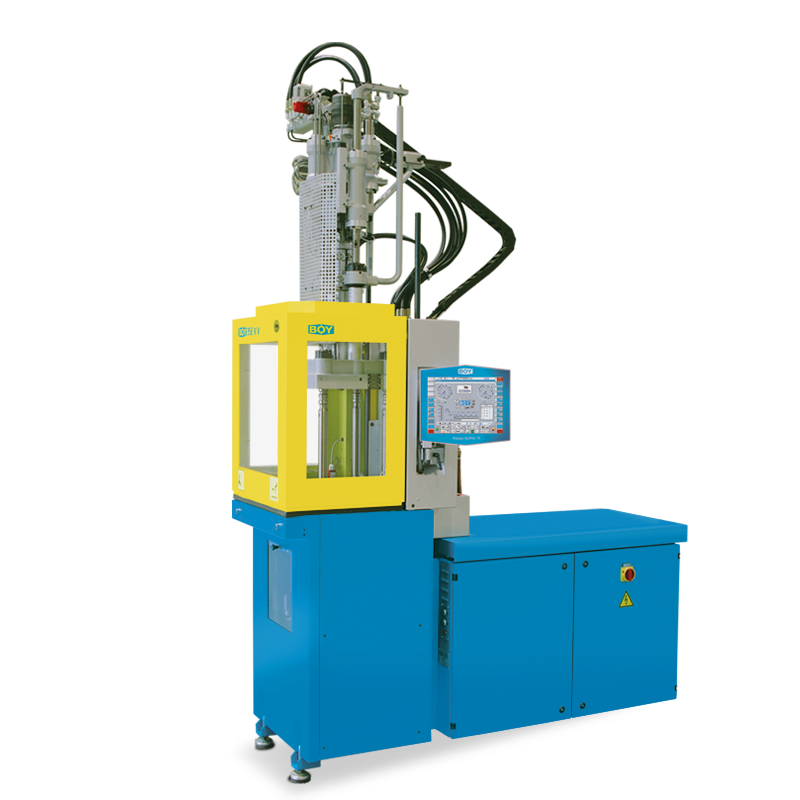

Versatile vertical machine with 350 kN clamping force. Its compact design is perfect for precise insert overmolding, providing high flexibility for automated production processes.

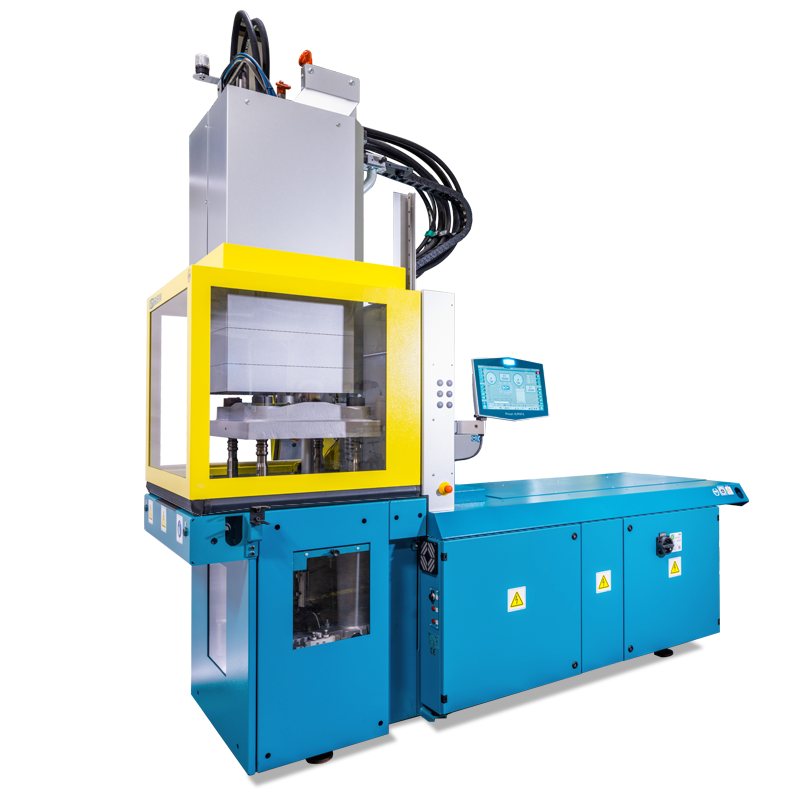

BOY’s most powerful vertical machine with 600 kN clamping force. With ample mold space and high shot volume, it is ideal for automated high-volume production.

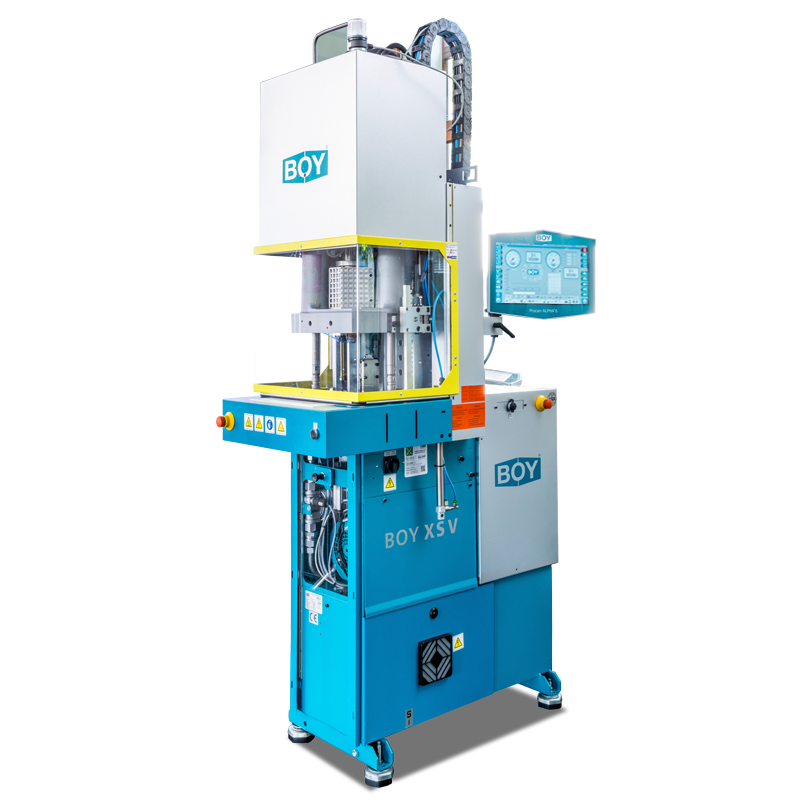

The smallest vertical injection molding machine from BOY – ideal for micro injection molding and precise overmolding of metal or cable components. Compact, reliable, and easily integrable into production lines.

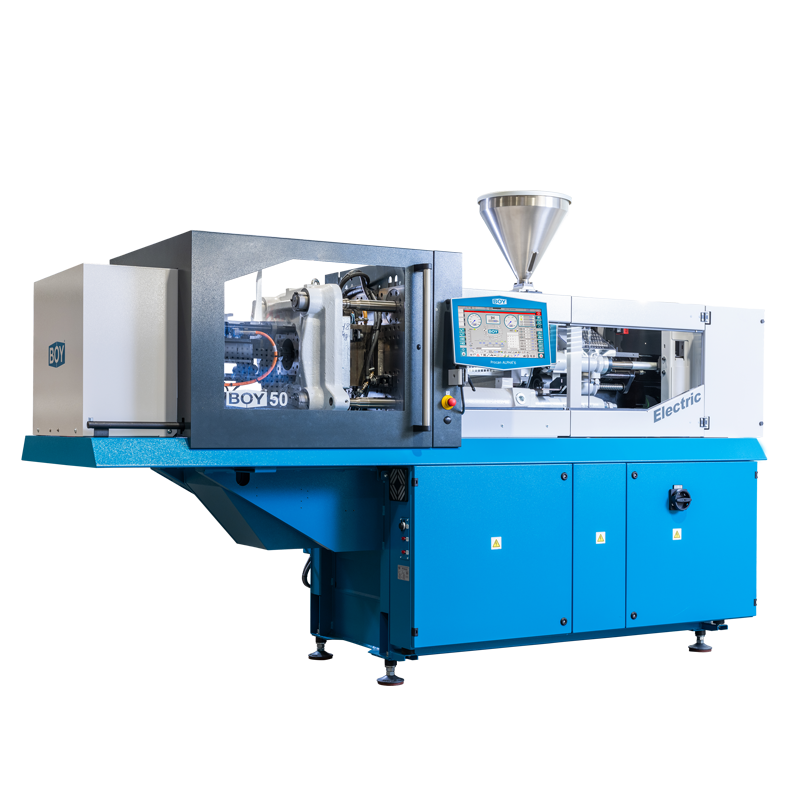

Alongside the established and energy-efficient servo-hydraulic machines of the proven E Series, BOY expands its lineup with the BOY Electric series, offering fully electric injection molding machines in the clamping force range from 39.34 to 112.4 US Tons.

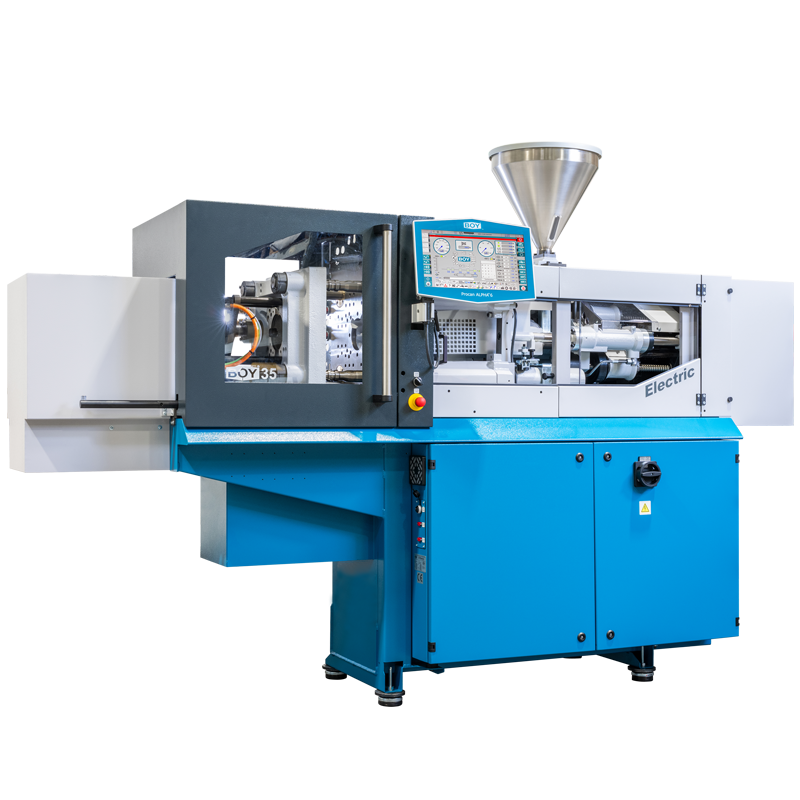

Complementing the well-established and energy-efficient servo-hydraulic machines of the E Series, BOY has expanded its product range with the BOY Electric Series, offering fully electric injection molding machines with clamping forces from 350 to 800 kN.
Building on the success of the proven and energy-efficient servo-hydraulic machines in the established E-series, the BOY Electric series, with clamping forces ranging from 350 to 800 kN, is now also part of our product lineup.

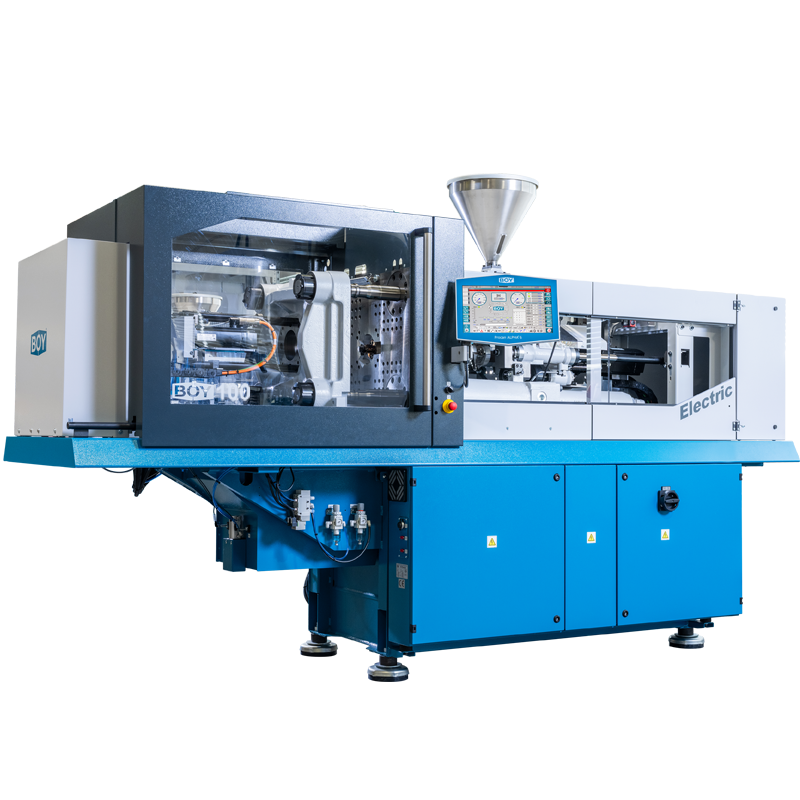

Building on the success of the proven, energy-efficient servo-hydraulic machines in the established E-series, our portfolio now also includes the BOY Electric series, with clamping forces ranging from 350 to 1000 kN.

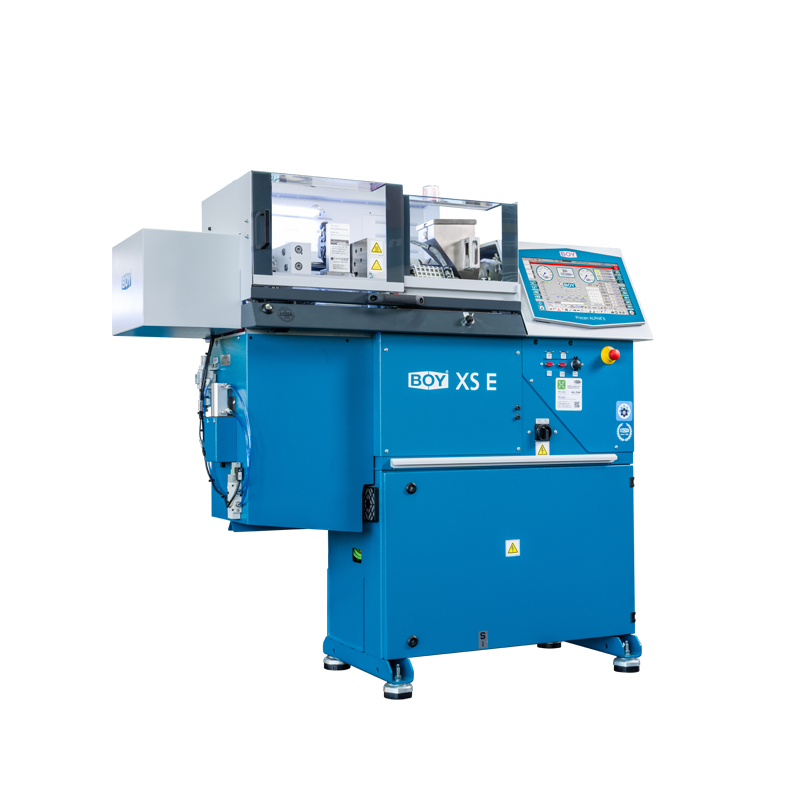

Ultra-compact and precise, delivering 11.24 US Tons of clamping force on just 1579 in². Ideal for micro injection molding and the production of small parts, with short cycle times and gentle material handling.
Compact and efficient: With a clamping force of 22.48 US Tons and a footprint of just 2783 in², the BOY 20 E PRO delivers reliable performance in continuous operation. Its ergonomic design, flexible expansion options, and a range of injection units make this injection molding machine a cost-effective solution featuring modern controls and an excellent price-performance ratio.

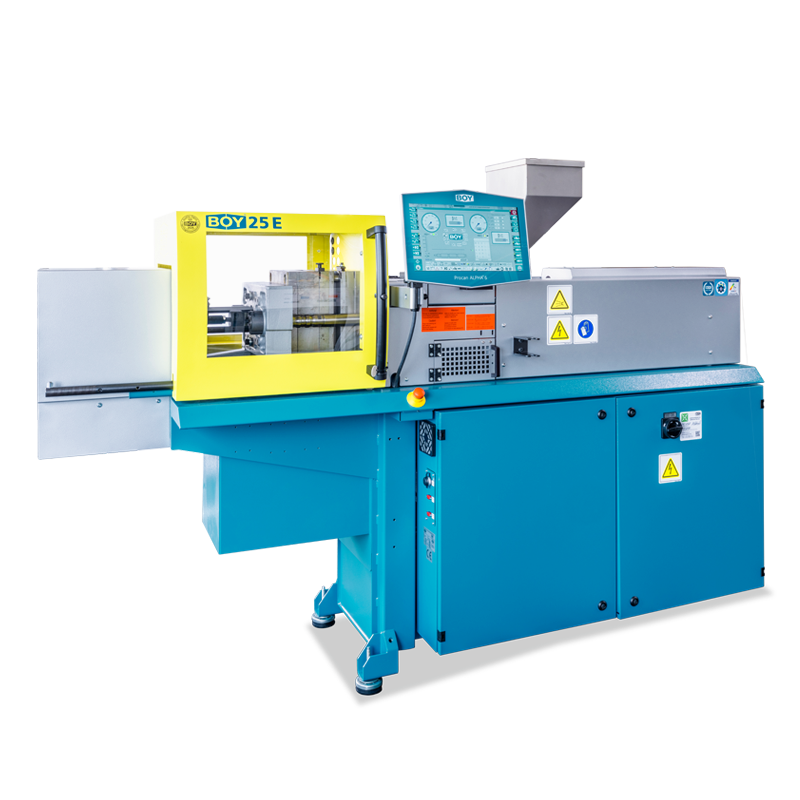

Compact & dynamic: with a clamping force of 28.1 US Tons and differential injection on a footprint of just 2793 in², this injection molding machine delivers exceptional precision and efficiency. It stands out for its versatility and is ideally suited for a wide range of injection molding applications.
Precision in the smallest space: This hydraulic injection molding machine requires less than 3040 in² of floor space and impresses with high manufacturing quality and flexible configuration options. It is the ideal choice for injection molding applications with tight tolerances and the highest demands on accuracy.

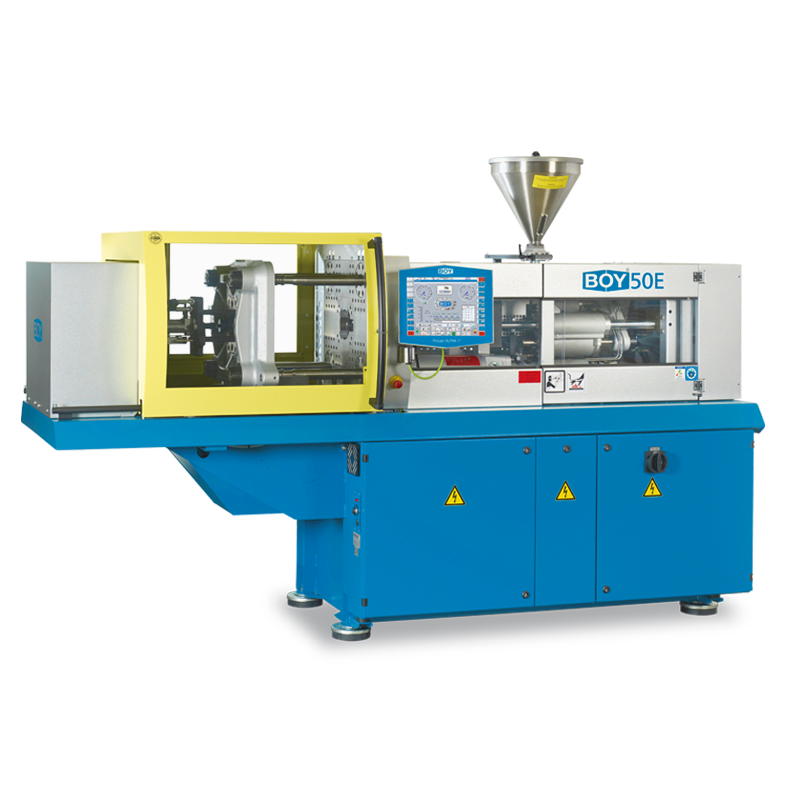

Powerful and efficient: With a clamping force of 56.2 US Tons, servo-motor-driven technology, and a wide range of features included as standard, this injection molding machine is an ideal partner for modern production lines.

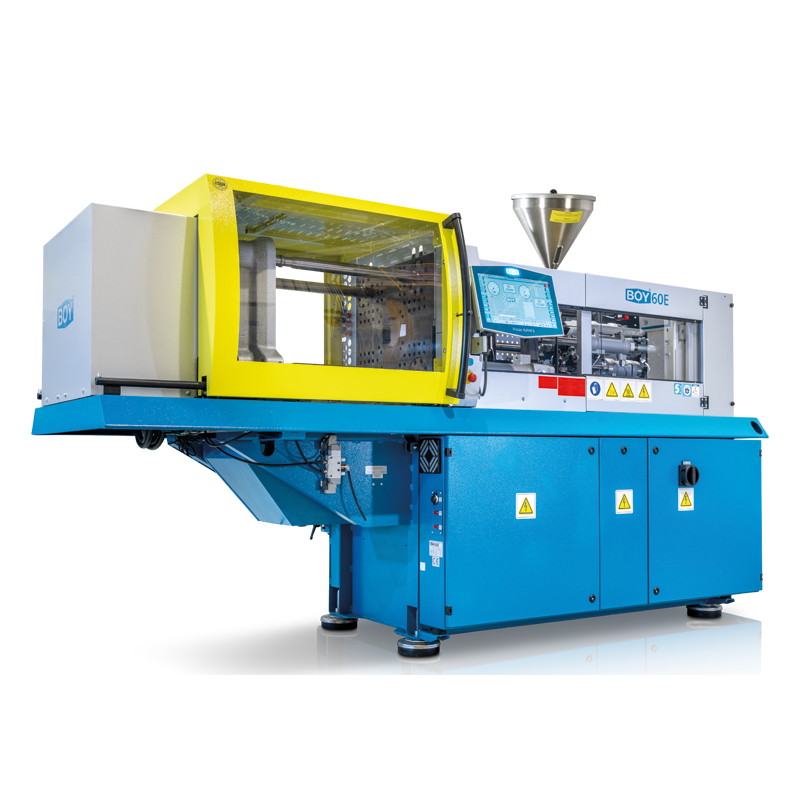

Cutting-edge technology in a compact design: With a clamping force of 67.44 US Tons, the Procan ALPHA 6 control system, and a servo-motor-driven drive, this injection molding machine delivers everything required for modern production demands. It is designed for maximum precision, high energy efficiency, and impressive performance.

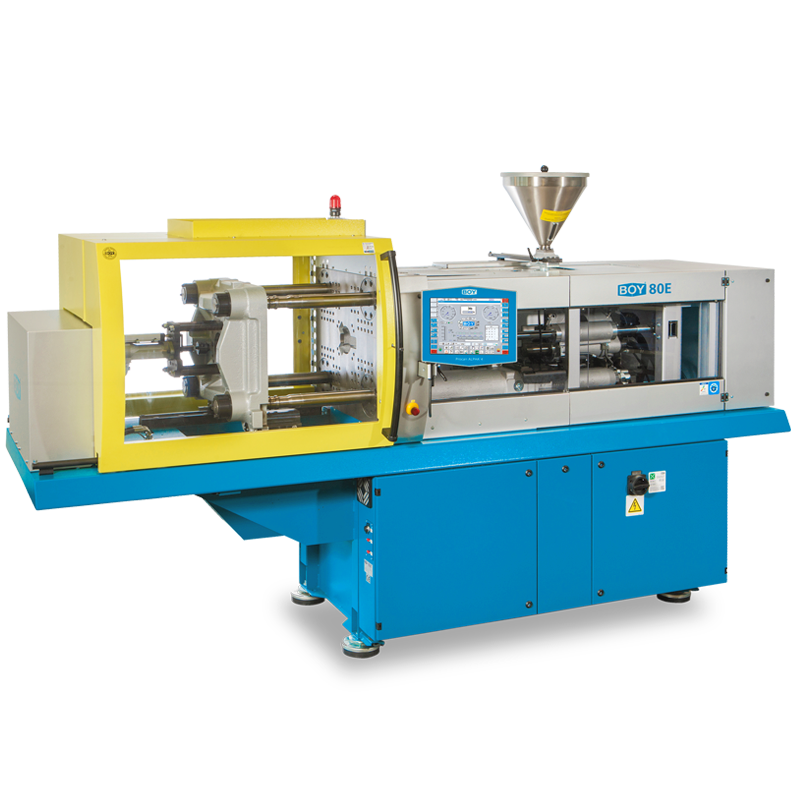

Performance & ease of operation: With a clamping force of 89.92 US Tons, a servo-motor-driven system, and a robust two-platen design, this injection molding machine delivers an energy-efficient and precise solution. It is ideally suited for injection molding applications in the medium to high performance range.
Maximum performance in a compact format: With a clamping force of 112.4 US Tons, this injection molding machine delivers exceptional efficiency within a minimal footprint. It is fully automatable and specifically designed for demanding manufacturing processes in plastics processing – precise, powerful, and cost-efficient at the same time.

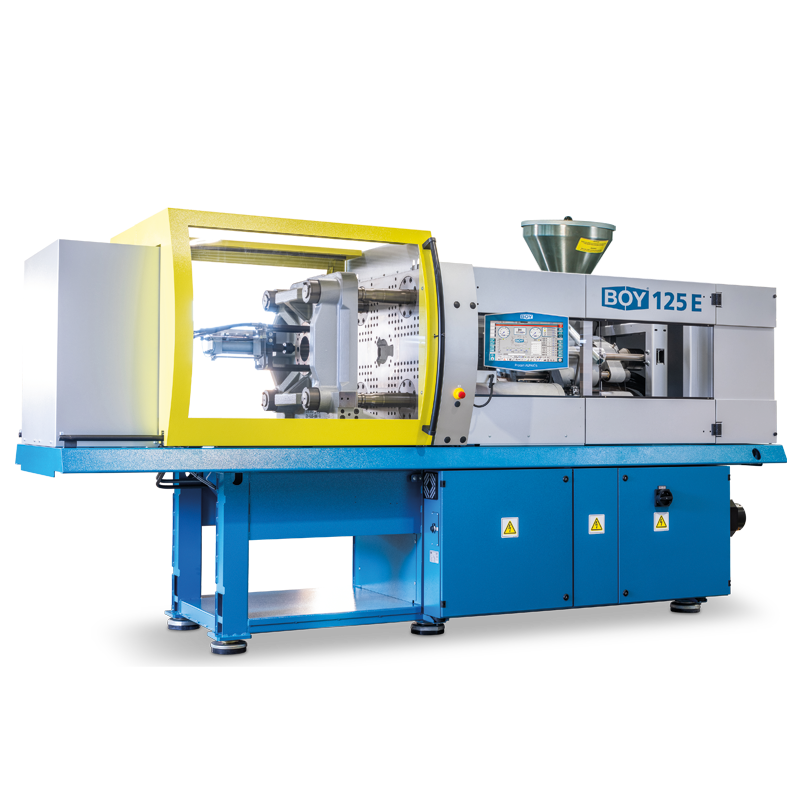

Top-tier performance: 140.51 US Tons of clamping force within a footprint of just 8098 in². Designed for fast changeovers, easy automation, and maximum flexibility – ideal for high-volume injection molding production.

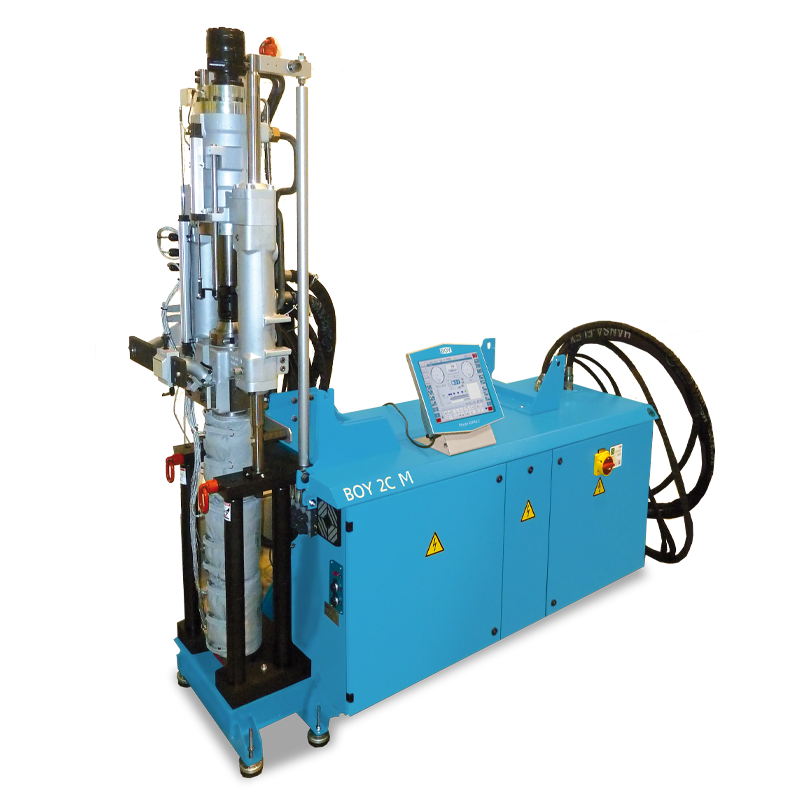

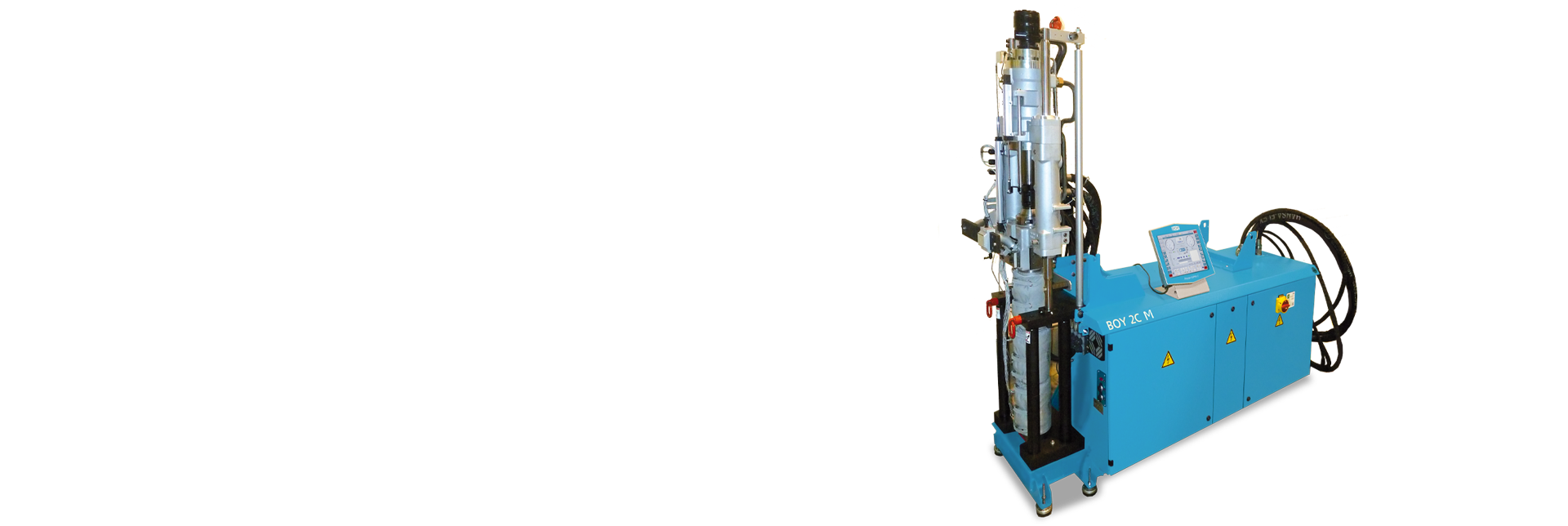

Maximum flexibility in a compact design: The BOY 2C M auxiliary injection unit enhances existing injection molding machines for two-component (2K) applications. Featuring its own drive system, flexible installation options, and high performance, it offers an ideal solution for cost-effective, precise, and automated production processes.

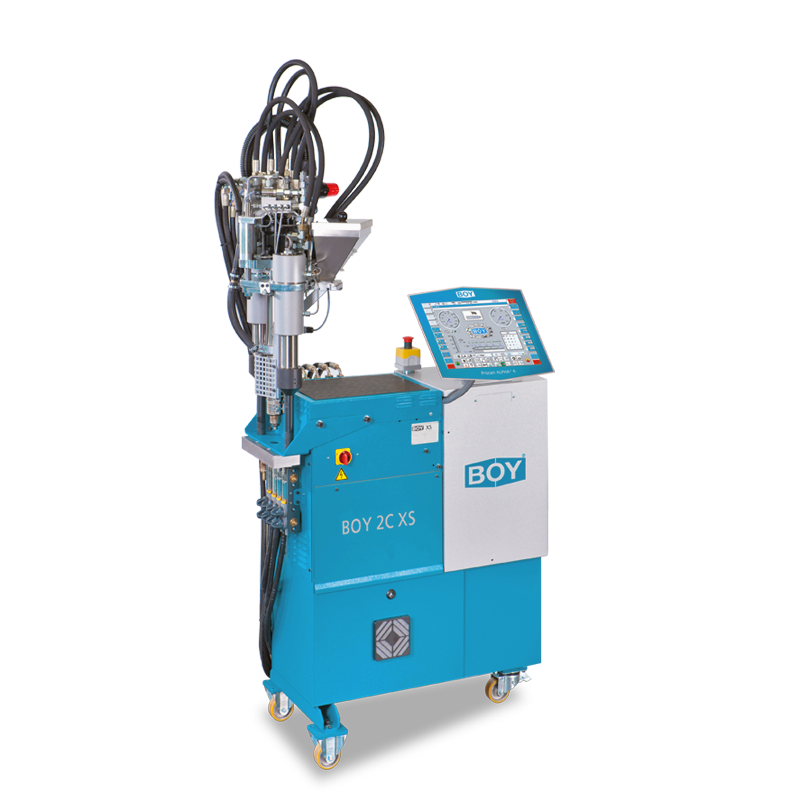

The injection unit for the second component is derived from the ultra-compact BOY XS platform and features its own independent hydraulic drive and control system.
