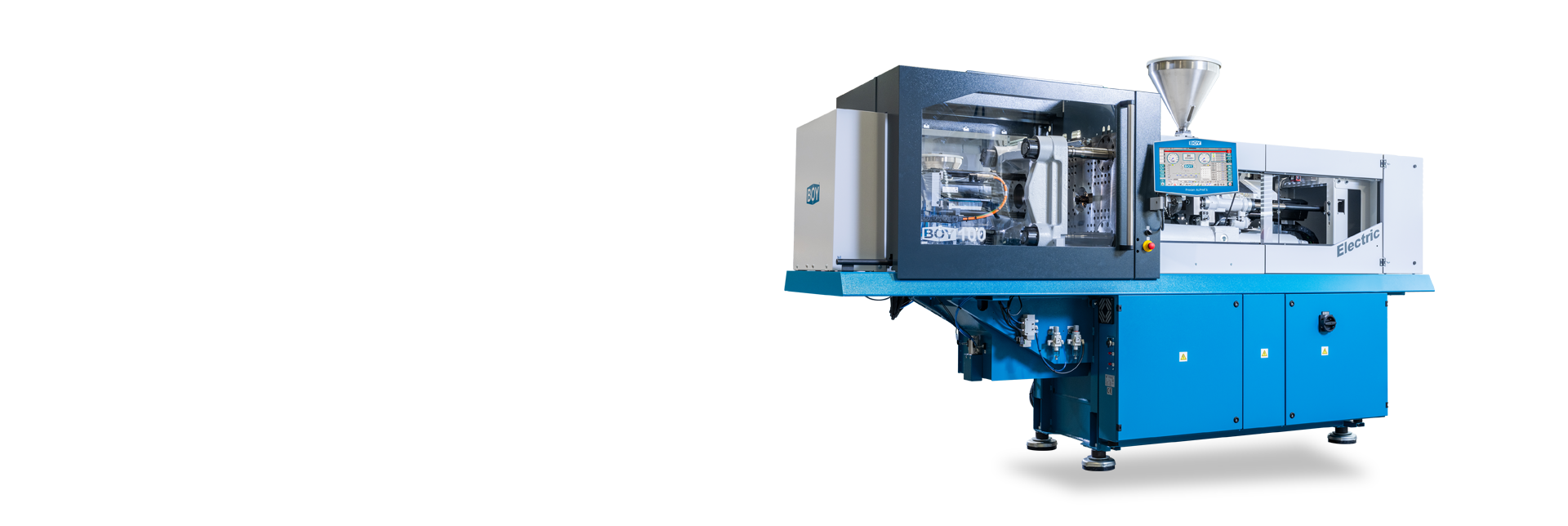

BOY 100 Electric – Fully Electric Injection Molding Machine for Peak Performance
High dynamics, precise control, and simultaneous movements
The BOY 100 Electric is an advanced injection molding machine featuring fully electric drives for injection, plasticizing, and ejection. It provides exceptional dynamics, precise positioning, and minimal cycle times – making it ideal for automation in injection molding and for high-demand applications in plastics processing.
Efficiency & Compact Design
With a newly developed universal injection unit and patented back-pressure measurement, the BOY 100 Electric sets new benchmarks in the injection molding machine industry. Its two-platen clamping system with an oil-free mold area, energy-optimized servo hydraulics, and pressure intensifier or differential pressure technology ensure maximum performance within the smallest possible footprint—making it a forward-looking, reliable solution for modern plastics manufacturing.
Highlights
- Parallel movement without double pump
- Compactness of a two-platen machine
- Highly dynamic injection unit
- Lubricant-free tool installation area
- Improved synchronised movement during ejection
- Parallel clamping force build-up for injection
- Highest positioning accuracy
- Possibility to actively brake
Technical data
- Euromap Size:
800-170 - Screw Diameter:
28, 32, 38, 42 - Max. Stroke Volume:
173.2 cm³ (theoretical) - Max. Injection Flow:
207.8 cm³/s - Max. Spec. Injection Pressure:
2210 bar - Max. Daylight Between Platen:
725 mm - Max. Opening Stroke:
475 mm - Distance Between Tie Bars:
430 x 360 mm
