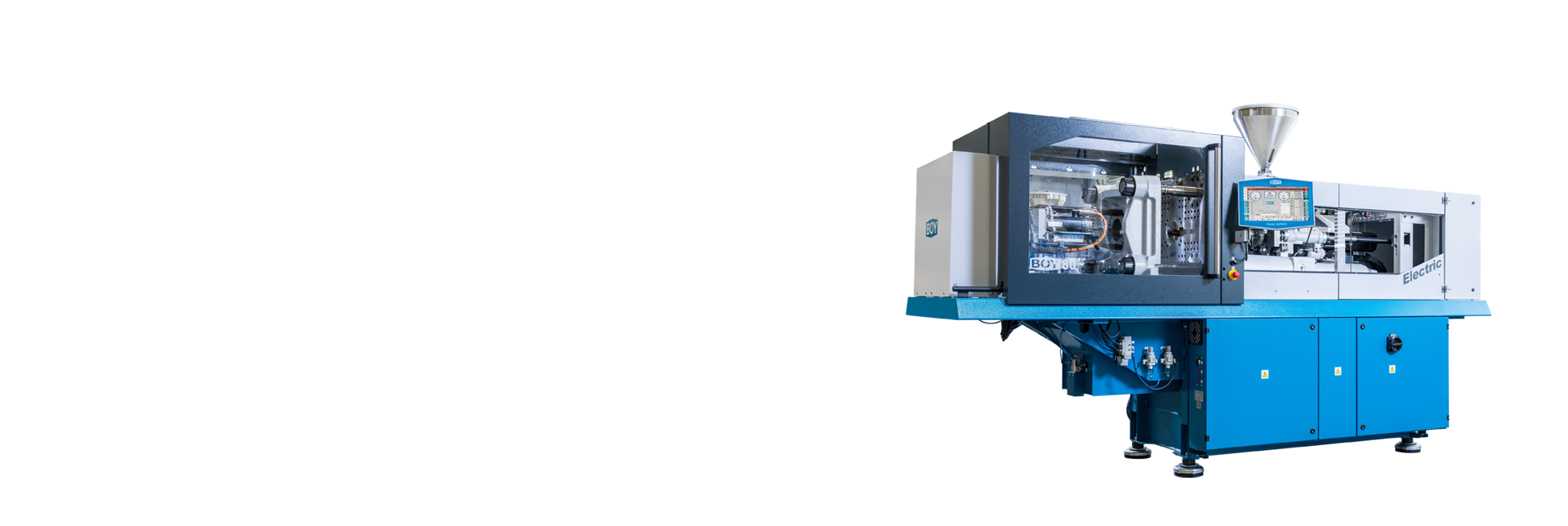

BOY 80 Electric – Fully Electric Injection Molding Machine for Optimal Dynamics and Precision
Advancing Innovation & Automation in Electromechanical Injection Molding
The BOY 80 Electric is a state-of-the-art injection molding machine featuring fully electric drives for injection, plasticizing, and ejection. It provides exceptional dynamics, accurate positioning, and shorter cycle times – making it ideal for automation in injection molding, delivering real production advantages, and ensuring high-quality plastics processing.
Compact Design & Energy-Efficient High Performance
Featuring a two-platen clamping unit and an oil-free mold area, the BOY 80 Electric combines energy-efficient servo hydraulics with a pressure intensifier and differential pressure technology. The electromechanical ejector allows for highly dynamic and precise movements, even during slow travel, free from stick-slip effects. A newly designed, compact machine with integrated safety technology (OSSD) makes it the ideal injection molding machine for demanding applications.
Highlights
- Parallel movement without double pump
- Compactness of a two-platen machine
- Highly dynamic injection unit
- Lubricant-free tool installation area
- Improved synchronised movement during ejection
- Parallel clamping force build-up for injection
- Highest positioning accuracy
- Possibility to actively brake
Technical data
- Euromap Size:
800-170 - Screw Diameter:
28, 32, 38, 42 - Max. Stroke Volume:
173.2 cm³ (theoretical) - Max. Injection Flow:
207.8 cm³/s - Max. Spec. Injection Pressure:
2210 bar - Max. Daylight Between Platen:
725 mm - Max. Opening Stroke:
475 mm - Distance Between Tie Bars:
430 x 360 mm
