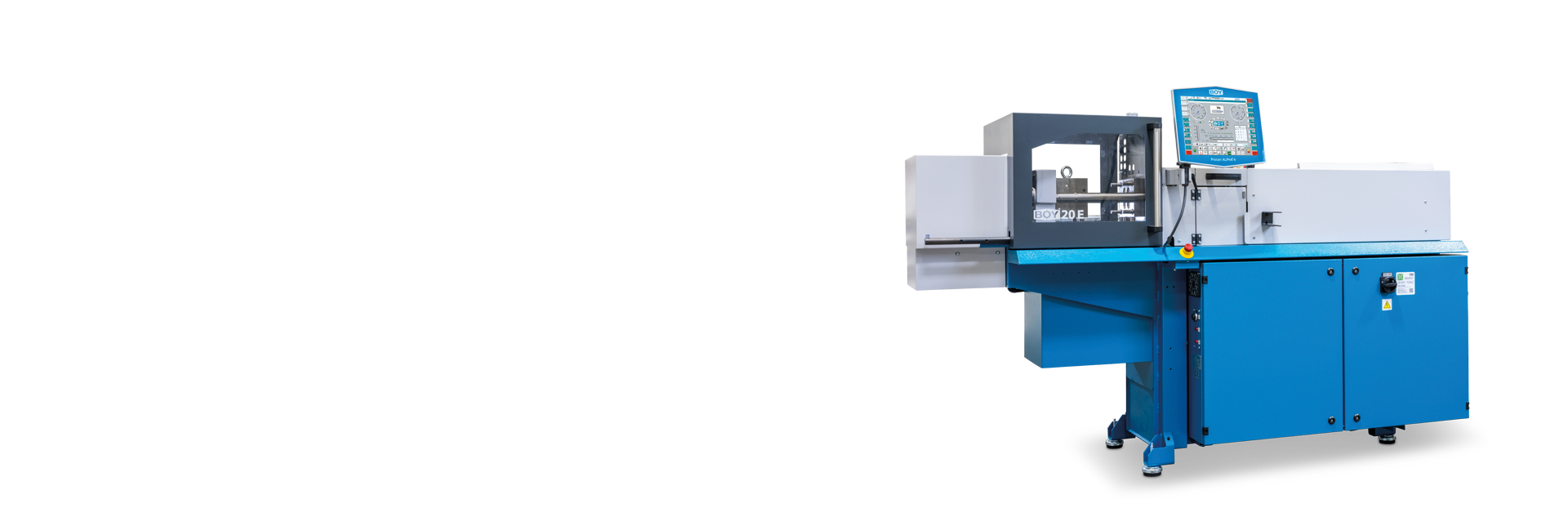

BOY 20 E PRO – Compact Injection Molding Machine for Maximum Efficiency
Reliable & cost-efficient in plastics processing
The BOY 20 E PRO stands for maximum operational reliability and exceptionally low hourly machine costs. With a footprint of just 2783 in², it is one of the most space-efficient injection molding machines in its class, while delivering outstanding energy efficiency and high production performance in plastics processing.
Ergonomic design & flexible automation
Thanks to its freely accessible clamping unit, the machine offers excellent accessibility and can be easily integrated with automation systems. The clear, ergonomic design simplifies handling, increases process reliability, and makes the BOY 20 E PRO an ideal solution for automated injection molding applications.
Extensive selection of injection units & options
In addition to the injection units 11 and 15, the SP 52 injection unit significantly broadens the range of applications with seven available screw diameters. Numerous options – ranging from integrated handling solutions such as the Integral Picker to standardized interfaces (e.g., EUROMAP 67) – make the BOY 20 E PRO a future-ready injection molding machine for plastics, designed to meet a wide variety of production requirements.
Highlights
- Compact design (only 2783 in² footprint)
- 22.48 US Tons clamping force
- Two-platen clamping unit
- Maximum efficiency & quality
- Lower energy demand
- Flexible use of moulds
- comfortable operation
- Cutting-edge technology – at a low price
- State-of-the-art control system
- Entry into energy-efficient servo-motor pump drives
- Attractive price-performance ratio
- Robust, proven design
- High cost-effectiveness thanks to low hourly machine rates
- Generous mold mounting dimensions with additional fastening options
Technical data
- Euromap Size:
220-11 / 220-15 / 220-52 - Screw Diameter:
0.47, 0.55, 0.71, 0.87, 0.94, 1.1, 1.26 in - Max. Stroke Volume:
3.93 in³ (theoretical) - Injection Volume Flow:
7 in³/s - Max. Spec. Injection Pressure:
37521 psi - Max. Daylight Between Platen:
15.75 in - Max. Opening Stroke:
7.87 in - Distance Between Tie Bars:
10 in
