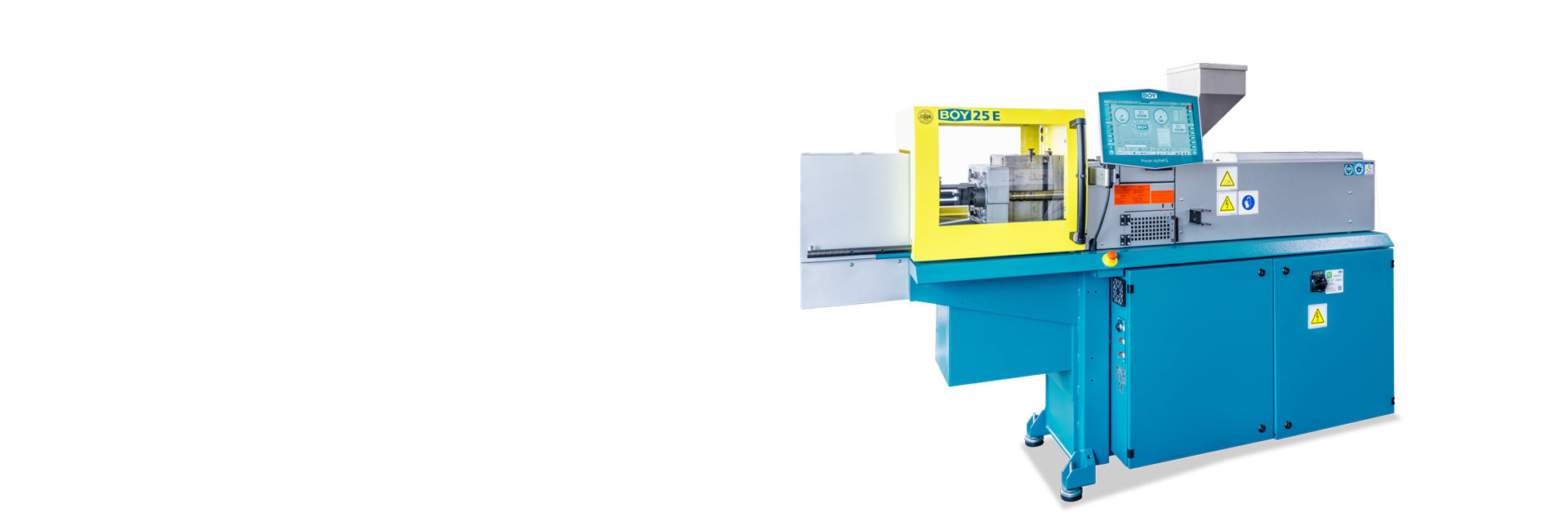

BOY 25 E – Compact Injection Molding Machine with 28.1 US Tons for Automated Applications
Efficient & precise plastics processing
As an experienced injection molding machine manufacturer, BOY stands for reliable technology and high machine availability. The BOY 25 E combines a clamping force of 28.1 US Tons with differential injection, enabling shorter injection cycles and increased dynamics – ideal for automated injection molding processes and cost-efficient plastics processing.
Compact, user-friendly & highly expandable
With a footprint of just 2793 in², the BOY 25 E ranks among the most space-efficient injection molding machines. Its freely accessible clamping unit simplifies mold changes and supports the easy integration of handling systems. Six available injection units and seven screw diameters offer extensive configuration options – from micro injection molding to standard applications. As a result, the BOY 25 E stands out as a highly flexible injection molding machine within the BOY machine portfolio.
Highlights
- Injection molding machine
- Compact design
- Only 2793 in² footprint
- 28.1 US Tons clamping force
- Servo-drive for BOY 25 E
- Hydraulic drive
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Ideal for long term operation
- Flexible use of molds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
250-11 / 250-16 / 250-39 / 250-56 / 250-69 / 250-82 - Screw Diameter:
0.47, 0.55, 0.71, 0.87, 0.94, 1.1, 1.26 in - Max. Stroke Volume:
4.66 in³ (theoretical) - Injection Volume Flow:
7.5 in³/s - Max. Spec. Injection Pressure:
39726 psi - Max. Daylight Between Platen:
15.75 in - Max. Opening Stroke:
7.87 in - Distance Between Tie Bars:
10 in
