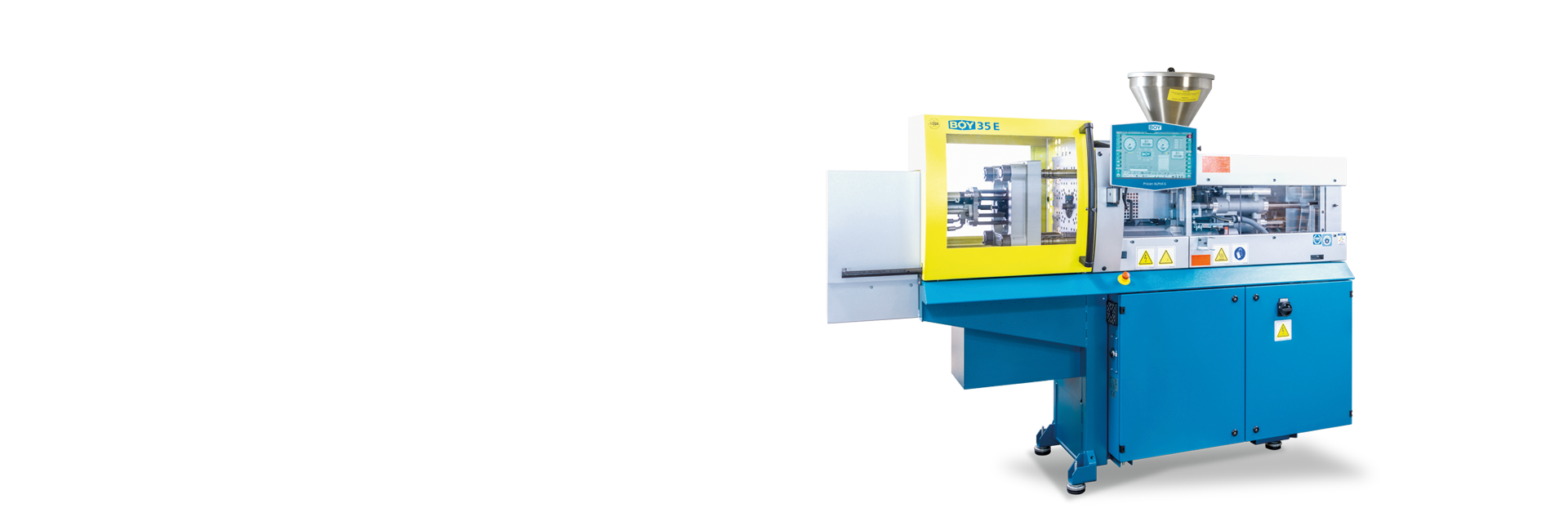

BOY 35 E – Compact Injection Molding Machine for Precise Plastics Processing
Precision & flexible automation
The BOY 35 E stands out as a hydraulic injection molding machine featuring a stable two-platen clamping unit and a swiveling injection unit. Its robust design and flexible configuration options provide ideal conditions for high-quality injection molding – even when working with tight tolerances.
Compact, cost-efficient & highly expandable
With a footprint of less than 3040 in², the BOY 35 E is one of the most space-efficient injection molding machines in its performance class – ideal for modern production environments. Low hourly machine rates, an excellent price-performance ratio, and a choice of six injection units and six screw diameters make it an efficient and versatile solution for automated injection molding processes and demanding plastics processing.
Highlights
- Injection molding machine
- Compact design
- Only 3040 in² footprint
- 39.34 US Tons clamping force
- Servo-Drive
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Maximum precision
- Flexible use of molds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
350-16 / 350-45 / 350-56 / 350-81 / 350-96 - Screw Diameter:
0.55, 0.71, 0.87, 0.94, 1.1, 1.26 in - Max. Stroke Volume:
4.66 in³ (theoretical) - Injection Volume Flow:
8.2 in³/s - Max. Spec. Injection Pressure:
39726 psi - Max. Daylight Between Platen:
19.69 in - Max. Opening Stroke:
11.81 in - Distance Between Tie Bars:
11.02 x 10 in
