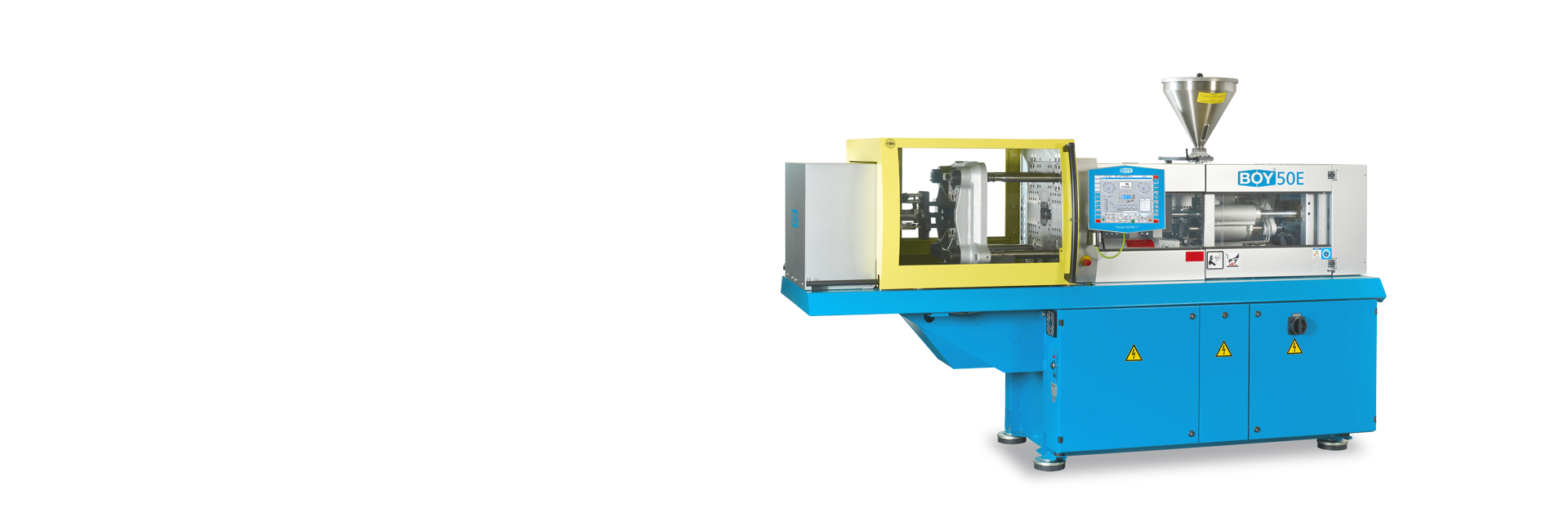

BOY 50 E – Injection Molding Machine with 56.2 US Tons and Servo-Motor Drive
Efficiency, precision & versatility in injection molding
The BOY 50 E ranks among the top-tier injection molding machines. With a clamping force of 56.2 US Tons, a servo-motor-driven pump system, and the Procan ALPHA 6 control, it delivers outstanding performance and ease of operation. Numerous functions are already included as standard, enabling straightforward automation in injection molding and surpassing conventional electromechanical systems in both efficiency and precision.
Setting benchmarks in plastics processing
The BOY 50 E combines a compact design with high clamping force and an energy-efficient drive system. This sets new standards in quality, cost-effectiveness, and flexibility. As a high-performance injection molding machine, it is ideally suited for modern production environments in plastics processing.
Highlights
- Injection molding machine
- Compact design
- 56.2 US Tons clamping force
- Servo-Drive
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Maximum precision
- Flexible use of molds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
500-56 / 500-69 / 500-82 / 500-170 - Screw Diameter:
0.71, 0.87, 0.94, 1.1, 1.26, 1.5, 1.65 in - Max. Stroke Volume:
10.57 in³ (theoretical) - Injection Volume Flow:
12.7 in³/s - Max. Spec. Injection Pressure:
39726 psi - Max. Daylight Between Platen:
25.59 in - Max. Opening Stroke:
15.75 in - Distance Between Tie Bars:
14.17 x 13.19 in
