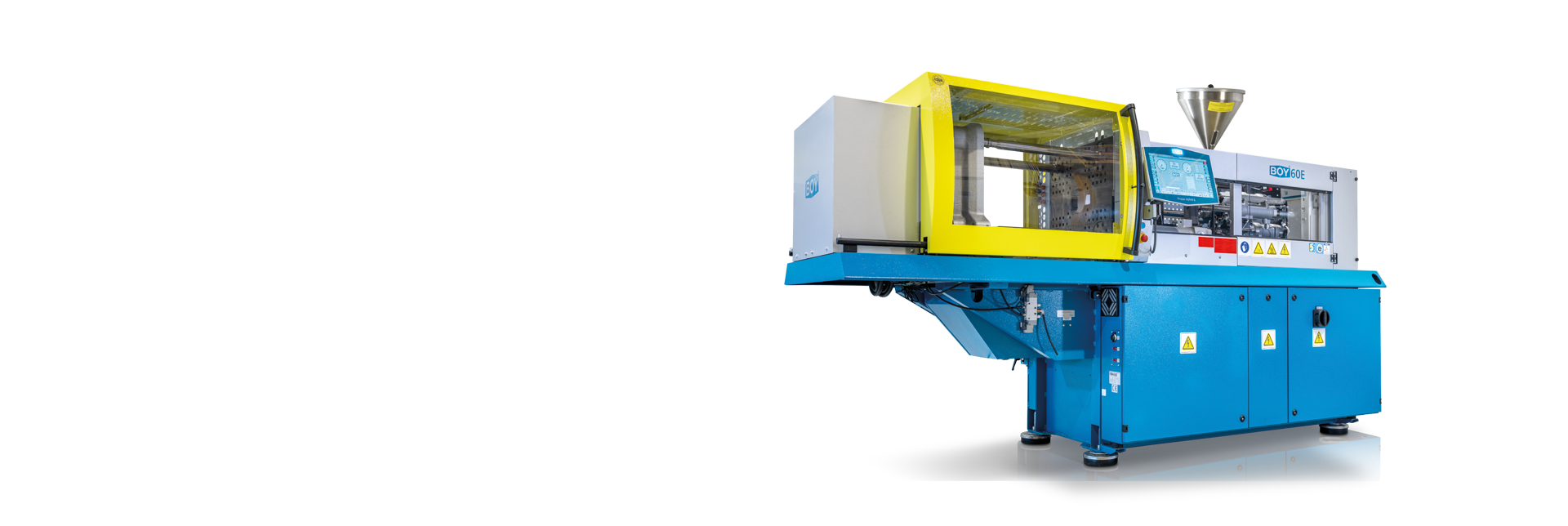

BOY 60 E – Compact Injection Molding Machine for Precise & Automated Injection Molding
Efficiency & precision with servo drive and Industry 4.0 functionality
The BOY 60 E stands out not only for its modern design, but also for outstanding technical performance and high cost efficiency. It ranks among the flagship models in the portfolio of injection molding machine manufacturer BOY. With a clamping force of 67.44 US Tons, a servo-motor-driven pump system, and the Procan ALPHA 6 control, it delivers maximum performance within a compact footprint. High energy efficiency, combined with a stable two-platen clamping system, makes it an ideal solution for demanding automated injection molding processes.
Performance & flexibility in plastics processing
Despite its compact footprint, the BOY 60 E delivers exceptional dynamic performance. Screw diameters ranging from 0.71 to 1.65 in, a shot volume of up to 10.57 in³, and injection rates of up to 8.32 oz/s ensure consistently high quality and excellent repeatability. This makes the BOY 60 E a versatile injection molding machine for efficient and precise plastics processing applications.
Highlights
- Injection molding machine
- Compact design
- 67.44 US Tons clamping force
- Servo-Drive
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Maximum precision
- Flexible use of molds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
600-56 / 600-69 / 600-82 / 600-110 / 600-215 - Screw Diameter:
0.71, 0.87, 0.94, 1.1, 1.26, 1.5, 1.65 in - Max. Stroke Volume:
10.57 in³ (theoretical) - Injection Volume Flow:
12.7 in³/s - Max. Spec. Injection Pressure:
40582 psi - Max. Daylight Between Platen:
25.59 in - Max. Opening Stroke:
15.75 in - Distance Between Tie Bars:
14.17 x 13.19 in
