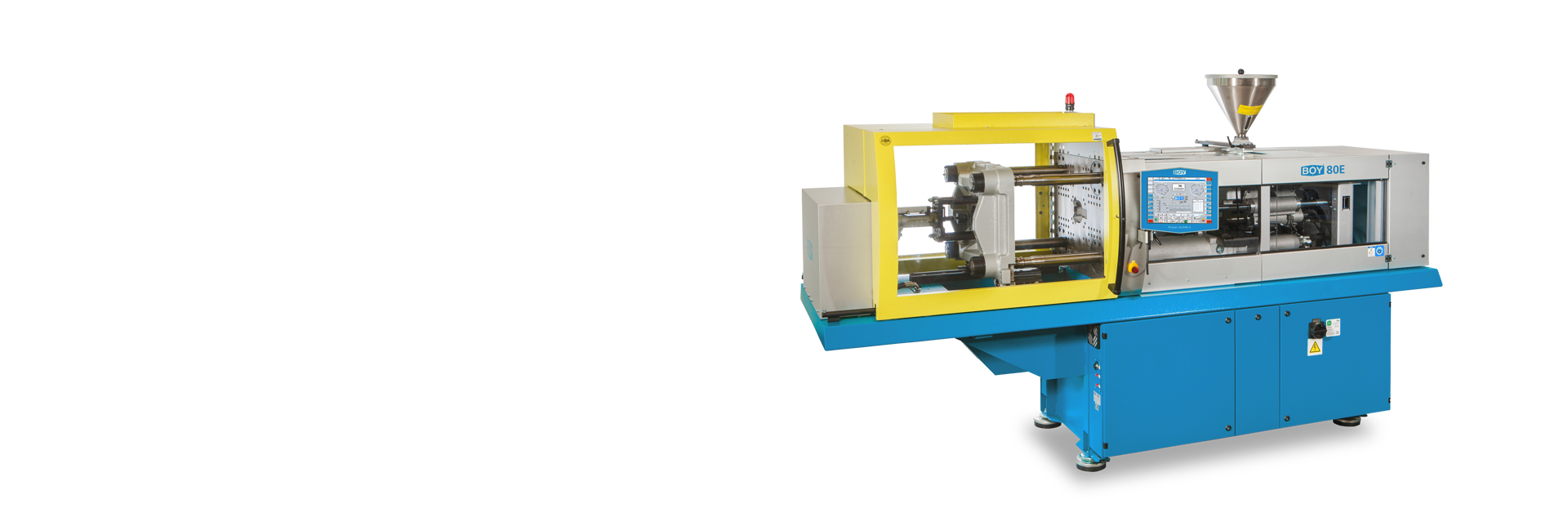

BOY 80 E – Injection Molding Machine for Precise, High-Performance, and Energy-Efficient Production
Top performance with servo drive & automation capabilities
As one of the most powerful models in the E Series, the BOY 80 E delivers an impressive clamping force of 89.92 US Tons. The servo-motor-driven pump system combined with the Procan ALPHA 6 control ensures maximum efficiency, dynamic performance, and cost-effective operation. Even in its standard configuration, the BOY 80 E is a fully equipped injection molding machine – perfectly suited for modern automated injection molding applications.
Compact, robust & versatile
The BOY 80 E combines a space-saving design with a robust two-platen clamping system and energy-efficient technology. It ensures outstanding process quality while maintaining low energy consumption. With screw diameters ranging from 1.1 to 1.65 in, a shot volume of up to 10.57 in³, and injection pressures of up to 40581 psi, this injection molding machine meets the highest demands for precision, repeatability, and flexibility in plastics processing.
Highlights
- Injection molding machine
- Compact design
- 89.92 US Tons clamping force
- Servo-Drive
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Maximum precision
- Flexible use of molds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
800-215 - Screw Diameter:
1.1, 1.26, 1.5, 1.65 in - Max. Stroke Volume:
10.57 in³ (theoretical) - Injection Volume Flow:
20.3 in³/s - Max. Spec. Injection Pressure:
40582 psi - Max. Daylight Between Platen:
28.54 in - Max. Opening Stroke:
18.7 in - Distance Between Tie Bars:
16.93 x 14.17 in
