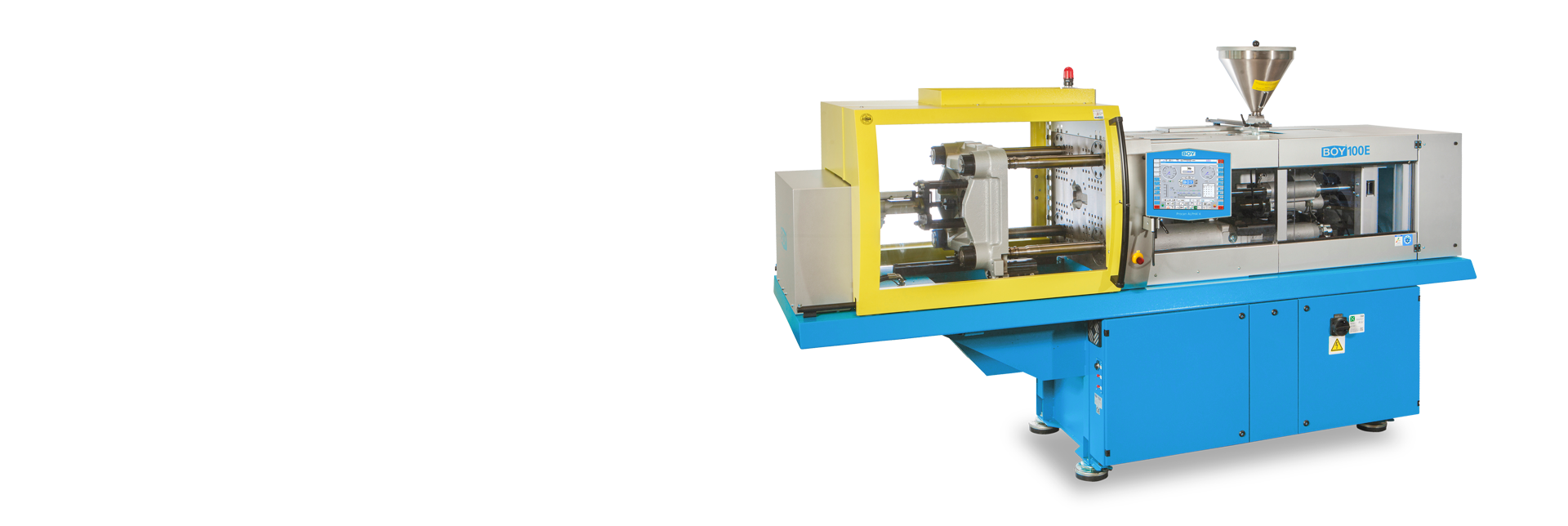

BOY 100 E – Precision Injection Molding Machine with 112.4 US Tons Clamping Force
Automation & energy efficiency at the highest level
The BOY 100 E is the most powerful model in the E Series, delivering a clamping force of 112.4 US Tons. Equipped with an energy-efficient servo drive and the Procan ALPHA 6 control system, it sets new benchmarks in dynamic performance, precision, and cost efficiency. Even in its standard configuration, it is a fully equipped injection molding machine – ideally suited for complex, automated injection molding processes.
Compact, flexible & reliable in plastics processing
Despite its high performance, the BOY 100 E is deliberately designed to be space-saving. The sturdy two-platen clamping unit, energy-optimized design, and generous mold access provide ideal conditions for a wide range of applications. With screw diameters ranging from 1.1 to 1.65 in, a stroke volume of up to 20.74 in³, and injection pressures of up to 40582 psi, this injection molding machine guarantees consistently high quality and uptime in plastics processing.
Highlights
- Injection molding machine
- 112.4 US Tons clamping force
- Servo-Drive
- Moveable injection unit
- Two-Platen-clamping unit
- Maximum efficiency
- Maximum quality
- Lower energy demand
- Maximum precision
- Flexible use of moulds
- Comfortable operation
- Procan ALPHA 6 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
1000-220 / 1000-400 - Screw Diameter:
1.1, 1.26, 1.42, 1.5, 1.65, 1.89, 2.05 in - Max. Stroke Volume:
20.74 in³ (theoretical) - Injection Volume Flow:
20.7 in³/s - Max. Spec. Injection Pressure:
40582 psi - Max. Daylight Between Platen:
28.54 in - Max. Opening Stroke:
18.7 - Distance Between Tie Bars:
16.93 x 14.17 in
