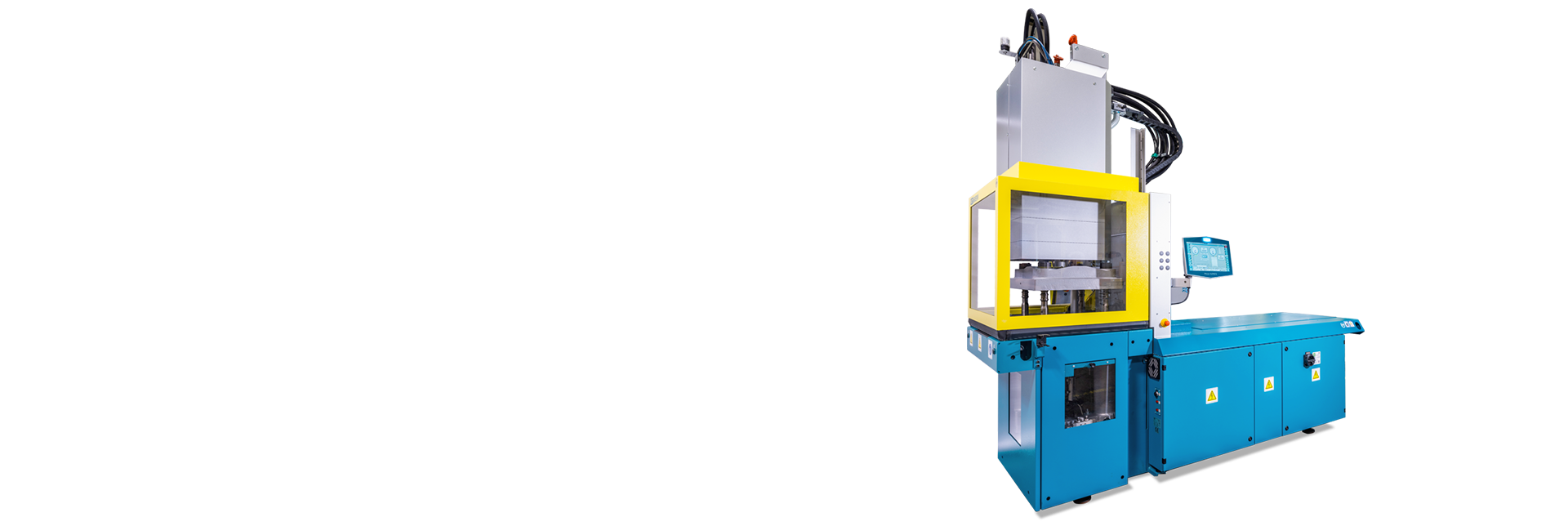

BOY 60 E VV – High-Performance Vertical Injection Molding Machine for Efficient Plastics Production
Overmolding for Large Shot Volumes
The BOY 60 E VV delivers high productivity with a 600 kN clamping force, making it ideal for manufacturers looking for precise, automated production. Its vertical design, large tie bars, and generous mold space provide optimal conditions for versatile and automated injection molding.
Large Shot Capacity with Space-Saving Design
Equipped with four screw diameters, the BOY 60 E VV efficiently handles large shot volumes and diverse plastics applications. Despite its powerful performance, the machine’s compact design ensures flexible space usage and keeps operating costs low through efficient performance.
Highlights
- Insert molding machine
- ergonomic construction
- compact design
- small footprint
- 600 kN clamping force
- hydraulic drive
- Two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- ideal for long term operation
- flexible use of molds
- comfortable operation
- Procan ALPHA 6 control
- easy automation
- worldwide service
Technical data
- Euromap Size:
600-56 / 600-69 / 600-82 / 600-215 - Screw Diameter:
18, 22, 24, 28, 32, 38, 42 mm - Max. Stroke Volume:
173.2 cm³ (theoretical) - Max. Injection Flow:
189 g/s (theoretical) - Max. Spec. Injection Pressure:
2798 bar - Max. Daylight Between Platen:
550 mm - Max. Opening Stroke:
300 mm - Distance Between Tie Bars:
360 x 335 mm
