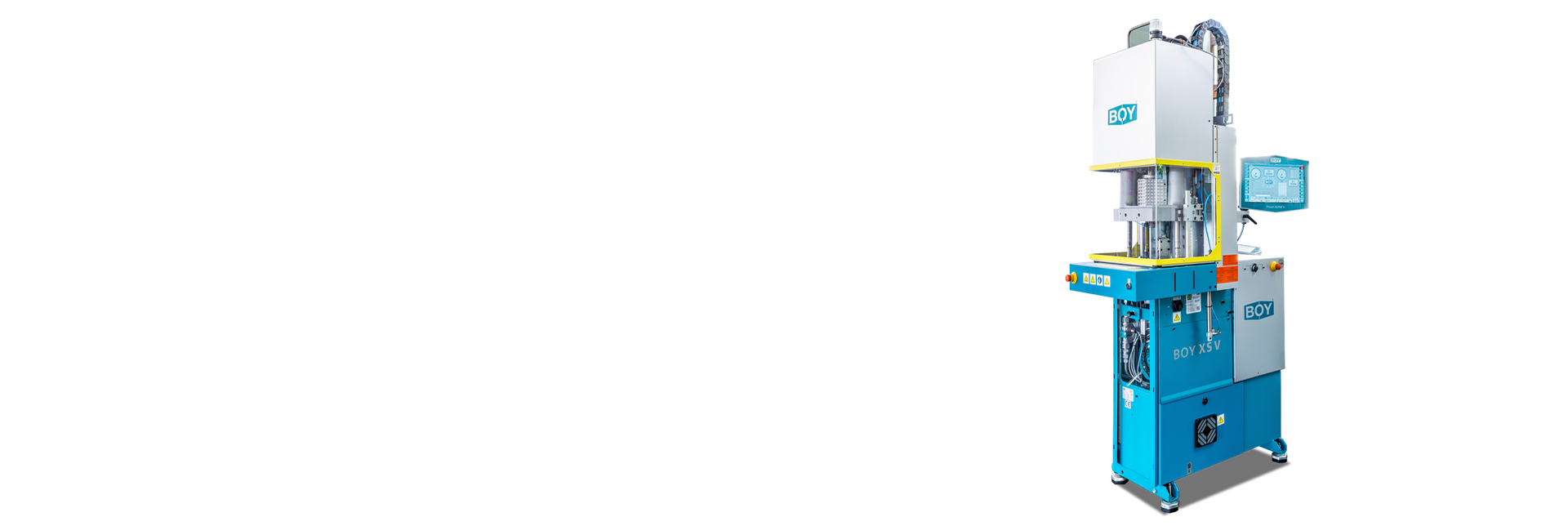

BOY XS V – Vertical Injection molding Machine for Automated Overmolding
Smallest BOY Molding Machine for High-Precision Results
The BOY XS V is a compact vertical injection molding machine with a vertical injection and clamping system. It is perfect for overmolding metal parts, semi-finished components, or cable ends. The fixed lower clamping unit prevents slippage during mold closure, ensuring high-precision injection molding.
Versatile, Automatable & Easily Integrated
With its two-platen clamping system and diagonally arranged tie bars, the BOY XS V offers excellent accessibility from all sides and integrates seamlessly into automated production lines.
Highlights
- Insert molding machine
- clamping and injection units vertically arranged
- ultra-compact
- only 0,64 m² footpring
- 100 kN clamping force
- perfect for Micro-injection
- maximum efficiency
- lower energy demand
- ideal for long term operation
- flexible use of molds
- comfortable operation
- Procan ALPHA 4 control
- easy automation
- worldwide service
Technical data
- Euromap Size:
100-3 / 100-14 - Screw Diameter:
8, 12, 14, 16 mm - Max. Stroke Volume:
8.0 cm³ (theoretical) - Max. Injection Flow:
36.8 g/s (ttheoretical) - Max. Spec. Injection Pressure:
3128 bar - Max. Daylight Between Platen:
250 mm - Max. Opening Stroke:
150 mm - Distance Between Tie Bars:
160 mm
