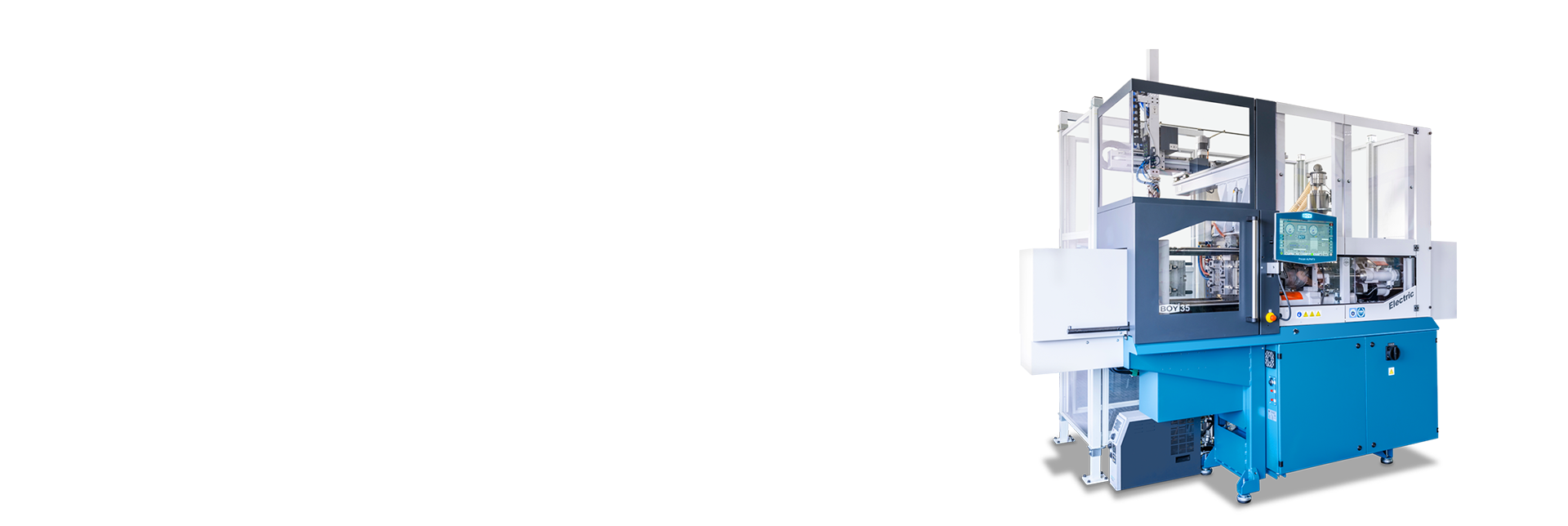

BOY 35 E VV – Vertical Injection Molding Machine for Efficient Automated Production
Precision in Vertical Design with Compact Dimensions
The BOY 35 E VV combines high-performance injection molding with a vertical two-platen clamping system, reflecting the proven design of the horizontal BOY 35 E. Its vertical configuration optimizes ergonomics and mold accessibility, while the fixed lower clamping plate prevents inserts from shifting, ensuring top precision in insert overmolding.
Compact, High-Efficiency Design with Flexibility for Production
With 350 kN clamping force and an advanced design, the BOY 35 E VV is perfect for automated plastics processing. Shot weights up to 69.5 g ensure high precision across a variety of applications. Its compact dimensions, along with ample space for peripheral equipment, make it the ideal solution for flexible and cost-efficient production.
Highlights
- Insert molding machine
- compact design
- small footprint
- 350 kN clamping force
- Servo-Drive
- Two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- ideal for long term operation
- flexible use of moulds
- comfortable operation
- Procan ALPHA 6 control
- easy automation
- worldwide service
Technical data
- Euromap Size:
350-16 / 350-45 / 350-56 / 350-81 / 350-96 - Screw Diameter:
14, 18, 22, 24, 28, 32 mm - Max. Stroke Volume:
76.5 cm³ (theoretical) - Max. Injection Flow:
122.2 g/s (theoretical) - Max. Spec. Injection Pressure:
2739 bar - Max. Daylight Between Platen:
500 mm - Max. Opening Stroke:
300 mm - Distance Between Tie Bars:
280 x 254 mm
