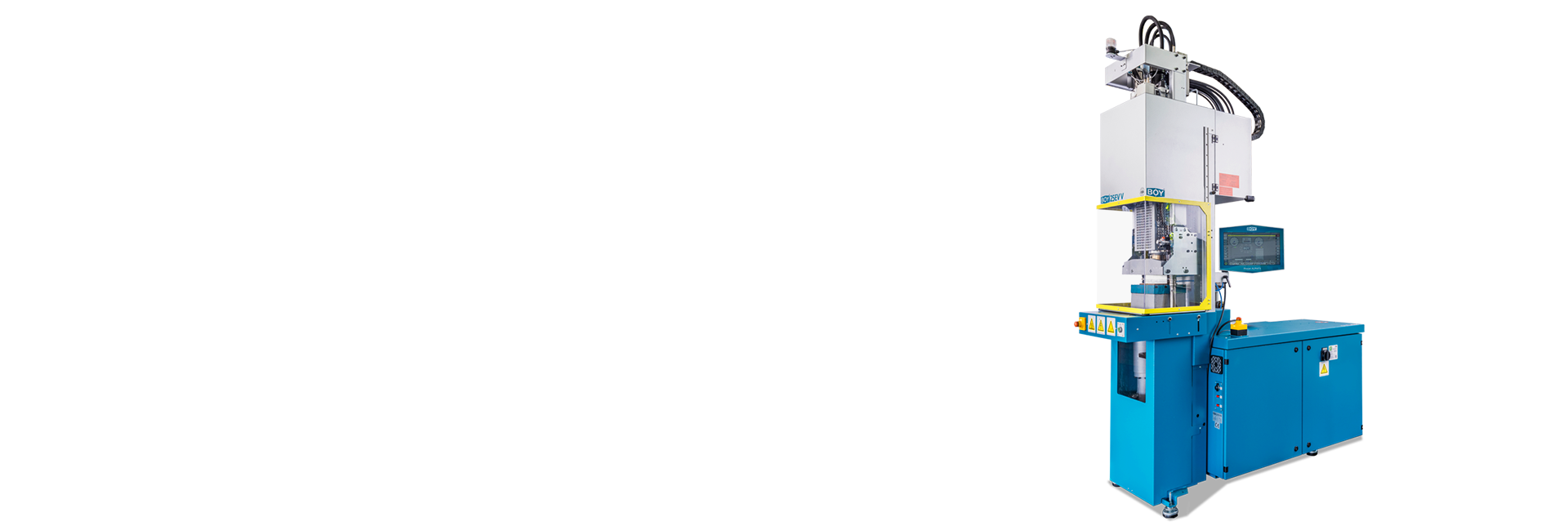

BOY 25 E VV – Vertical Overmolding Machine with 250 kN Clamping Force for Premium Plastics Processing
Unmatched precision and compact efficiency
The BOY 25 E VV is a reliable injection molding machine that pairs 250 kN of clamping force with a vertical two-platen clamping system. Its fixed base and approximately 11% smaller footprint provide ergonomic, safe access to the mold chamber – making it ideal for automated overmolding production.
Advanced hydraulic system for faster cycles
Featuring a new hydraulic pump that delivers higher flow rates, the BOY 25 E VV enables faster machine movements. Optimized flow control and low friction minimize dry running times to just over one second (according to EUROMAP 6), ensuring maximum energy efficiency while maintaining peak performance.
Highlights
- Insert molding machine
- clamping and injection units vertically arranged
- compact design
- only 1,40 m² footprint
- 250 kN clamping force
- hydraulic drive
- Two-Platen-clamping unit
- maximum efficiency
- maximum quality
- lower energy demand
- ideal for long term operation
- flexible use of molds
- comfortable operation
- Procan ALPHA 6 control
- easy automation
- worldwide service
Technical data
- Euromap Size:
250-11 / 250-16 / 250-39 / 250-56 / 250-69 / 250-82 - Screw Diameter:
12, 14, 18, 22, 24, 28, 32 mm - Max. Stroke Volume:
76.5 cm³ (theoretical) - Max. Injection Flow:
111.2 g/s (theoretical) - Max. Spec. Injection Pressure:
2739 bar - Max. Daylight Between Platen:
400 mm - Max. Opening Stroke:
200 mm - Distance Between Tie Bars:
254 mm
